ELECTRIC TORQUE MULTIPLIERS
electrictorque

alkitronic’s electric torque multipliers fit perfectly where high torques, fast operating speed, exact precision or a high number of joints are required. They are especially useful in case of turbo-assembly applications, or for the use in the production environments. The protection art IP54 shields the tools against moisture and dust. The different models cover torque output from 100 Nm to 45,000 Nm.

Benefits of electric torque multipliers by alkitronic

  • The automatic shut-off unit ensures precise torques with up to 38
  • adjustable torque outputs and reliable repeatability.
  • Extremely high rundown speed
  • The brushless synchronous motor works very efficient due to its –minimized risk of failure
  • Models with protection art IP54 are resistant to moisture, dust and even rain
  • The tools can be used in all international power grids (100-253V / 45-66 Hz) with constant torque precision, ideal for mobile units
EFCip
EFCip-150x150
efcip1
efcip2
efcip3
efcip4-228x300

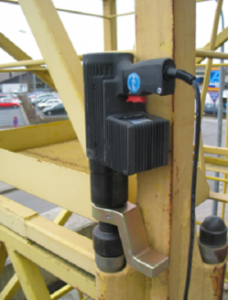

efcip5-228x300
efcip6-228x300
efcip7-239x300
efcip8-228x300

ALKITRONIC SPECIALS

Specifications: All alkitronic electric torque multipliers with CE-certification. Repeat accuracy ± 3% for the same bolting application

Electrical data: Universal AC Input 100 V – 253 V, frequency 45 Hz – 66 Hz Power max. 2000 W, protection category I. Protection class IP 54 (standard)

APPLICATIONS

alkitronic EFCip / ECWip electric multipliers for torques of 60 Nm to 6,500 Nm.
Consistent torque accuracy in all international power grids (100-253 V / 45-66 Hz).
Automatic shut-off system guarantees precise torque output. It even handles fluctuating voltages (e.g. portable generators).
Models ECWip angle tools for restricted access.

ADVANTAGES

  • Do not allow the weather to interrupt your workflow thanks to protection art IP54. Protects the tool from moisture and rain.
  • Low running costs due to maintenance-free, low-wear, brushless synchronous motor with excellent efficiency.
  • Permanently higher joint quality compared to ratchet torque tools by continuous rotation of the square drive.
  • Excellent handling due to one-finger switch.
  • Ergonomic and comfortable operation: The 360 degree rotating handle prevents reaction forces from being transferred to the operator.
  • Master quality boltings according to the torque/angle procedure with the tools EFCip / ECWip in version “plus”.
  • Innovative motor protection with automatic switch-off to secure the bolting quality.
  • Consistent and precise reproduction of the pre-selected torque thanks to smart processor-controlled switch-off electronics.
  • Robust and long lasting: motor housing of cast aluminum.

ADVANTAGES

  • Low running costs due to maintenance-free, low-wear,brushless synchronous motor with excellent efficiency.
  • High motor speed: Up to three times faster than conventional electrical torque multipliers.
  • Permanently higher joint quality compared to ratchet torque tools by continuous rotation of the square drive.
  • Ergonomic and comfortable operation: The 360 degree rotating handle prevents reaction forces from being transferred to the operator.

ALKITRONIC SPECIALS

  • Master quality boltings according to the torque/angle procedure with the models EFCip / ECWip in version”plus”.
  • Innovative motor protection with automatic switch-off to secure the bolting quality.
  • Consistent and precise reproduction of the pre-selected torque thanks to smart processor-controlled switch-off electronics.
  • Robust and long lasting: motor housing of cast aluminum.
  • Safe work in any weather (moisture, rain). Ask us about protection class IP 54.

Specifications: All alkitronic electric torque multipliers with CE-certification. Repeat shut-off accuracy ± 3% for the same bolting application.

Electrical data: Universal AC Input 100 V – 253 V, frequency 45 Hz – 66 Hz Power max. 2000 W, protection category I. Protection class IP 20 (standard), protection class IP 54 (optional).

EF
EF-150x150

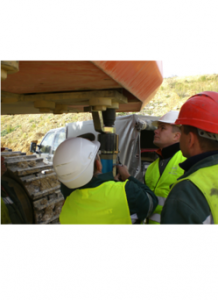

ef1-218x300

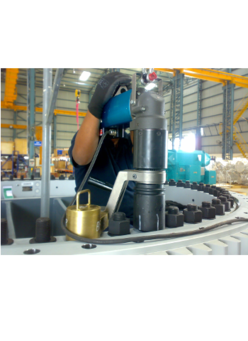

ef2

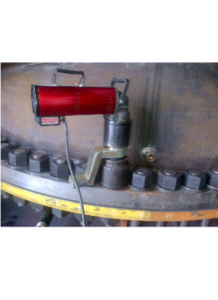

ef3-218x300

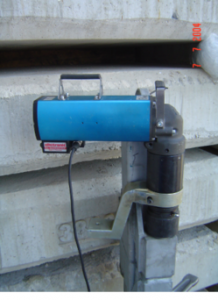

ef5-218x300

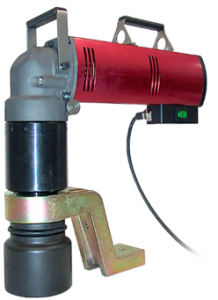

ef6-218x300

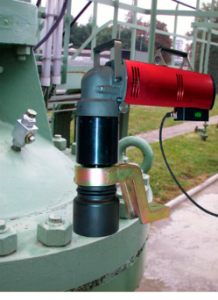

ef7-218x300

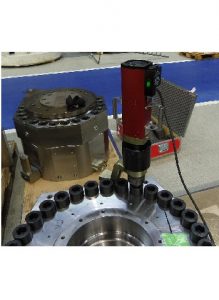

ef11-219x300

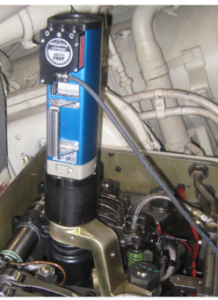

ef-218x300

APPLICATIONS

  • alkitronic EF/EFW electrical torque multipliers for torques of 400 Nm to 42,500 Nm.
  • Consistent torque accuracy in all international power supplies 100-253 V / 45-66 Hz.
  • Precise shut-off torque also at operation with voltage-controlled portable generators.
  • Models alkitronic EFW angle tools for comfortable operation in areas difficult to access.
ECip-N
ECip-N-1-150x150
efcip-N1-168x300
efcip-N2-300x212
efcip-N3
efcip-N4
efcip-N5-225x300

ADVANTAGES

  • No down-time: Safe work in any weather (moisture, rain) – thanks to protection class IP54.
  • Low running costs due to the maintenance-free brushless synchronous motor operating with excellent efficiency.
  • Permanently higher joint quality compared to ratchet torque tools by continuous rotation of the square drive Simple handling: 1-finger switch for quick and comfortable handling.
  • Ergonomic workflow: the 360 degree rotating handle ensures comfortable operation. No reaction forces are transferred to the operator.



Specifications: all alkitronic electric torque multipliers come with CE-certification.

Electrical data: Universal AC Input 100 V – 253 V, frequency 45 Hz – 66 Hz Power max. 2000 W, protection category I. Protection class IP 54 (standard).

APPLICATIONS

alkitronic ECip-N electric multipliers for comfortable operation at deep bolting connections due to extended nose.
torque range: 510 Nm to 3,000 Nm.
Consistent torque accuracy in all international power supplies 100-253 V / 45-66 Hz even when operating with portable generators.
Smart processor-controlled shut-off electronics for precise reproduction of the preselected torque (repeatability ± 3% for the same bolting application).



ALKITRONIC SPECIALS

  • Innovative motor protection with automatic switch-off to secure bolting quality.
  • Intelligent automatic shut-off system for constant and exact reproduction of the pre-set torque (repeat shut-off accuracy ± 3% for the same bolting application).
  • Extraordinary robust aluminum motor housing.
