Hydraulic Pumps
hydraulicpump
Alkitronic hydraulic pumps with electric or pneumatic drive provide fast operating speed, reliability and safety. They fit perfectly for permanent operation. Our hydraulic pumps with a worldwide proven pneumatic drive are also suitable for operation in explosion-prone areas. The electric driven pumps protect against rain, splashing water and dust (protection art IP 54), thus preventing cost-intensive downtime.



High Speed 24/7 with alkitronic Hydraulic Pumps

The innovative drive of the alkitronic electric hydraulic pumps is based on a maintenance-free and brushless synchronous motor. When changing from power stroke to return stroke, the drive only changes the rotation direction. Conventional pumps use magnetic control valves, which can lead to overheating of the hydraulic oil. Due to the patented alkitronic control system trouble-prone magnetic valves are abstained. Thus, the pump is a perfect fit to continuous operation.

Benefits of Hydraulic Units by alkitronic

  • High working speed, short set-up times. Connection of up to four hydraulic torque tools is possible. This increases productivity and saves time and money.
  • Simple and ergonomic remote control for convenient working and adequate safety distance.
  • High precision (± 3%) through all pressure ranges by precisely adapted oil flow rate.
  • Manual or automatic operation with ergonomic remote control for convenient and safe working.
  • Air cooling, robust design and low weight. The housing design ensures optimum heat dissipation.
  • Flexible bolting applications. Compatible with nearly all hydraulic torque wrenches, independent of cylinder size and torque range.
  • alkitronic Nova: Delivered in “Multibox” equipped with eyelets and handles, certified for crane transport.

VELOX

ADVANTAGES

  • High precision (± 3%) through all pressure ranges, defined by
    precisely adapted oil flow rate.
  • Air cooling, robust design, low weight. The housing design
    ensures optimum heat dissipation.
  • Simple operating: one-push-button remote control for ergonomic, working convenience and distance safety.
  • High working speed and short set-up times. Can connect two
    hydraulic torque tools to increase productivity and to save time
    and money.
  • Flexible bolting applications. Compatible with almost all hydraulic
    torque wrenches, regardless of cylinder size and torque range.

aLKITRONIC SPECIALS

  •  Low maintenance costs due to the maintenance-free, low-wear and brushless synchronous motor. No magnetic control valves and therefore no wear.
  •  Modular construction for cost-saving upgrade or parts exchange.
  •  Individual operation – basic version with manual control.
  •  Integrated motor protection to avoid damage due to overload.
veloxmitrahmen

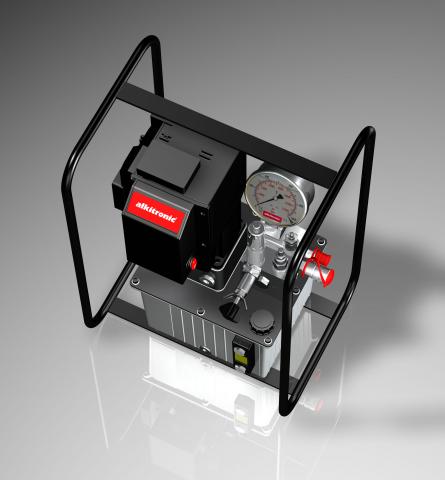

veloxmitrahmenvonoben

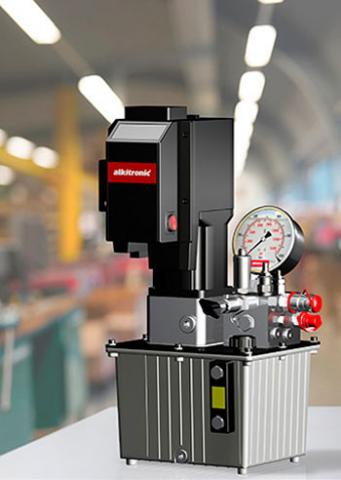

velox-350x500

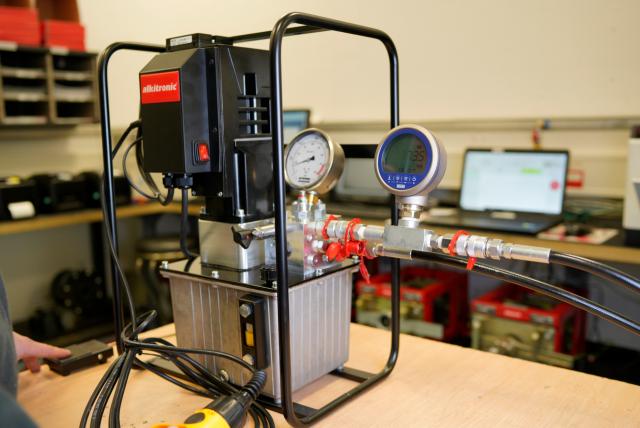

zzzz3868

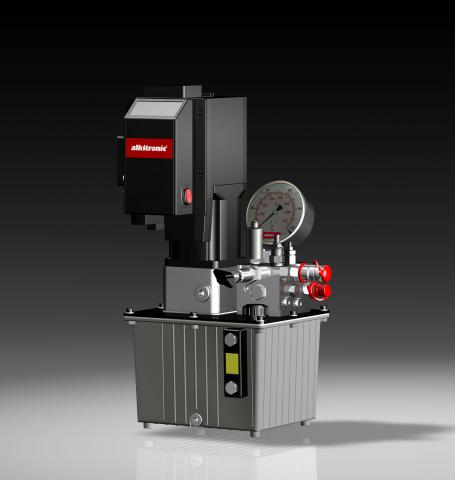

veloxohnerahmen

APPLICATIONS

alkitronic® VELOX is a robust, long-life quality product made in Germany.

  • This unique electrical hydraulic pump (protection class IP65) is protected against rain, splashing water and dust deposit to eliminate costly downtime.
  • Its suitable for 110 V or 230 V main grids and voltage-controlled mobile power units
leva1

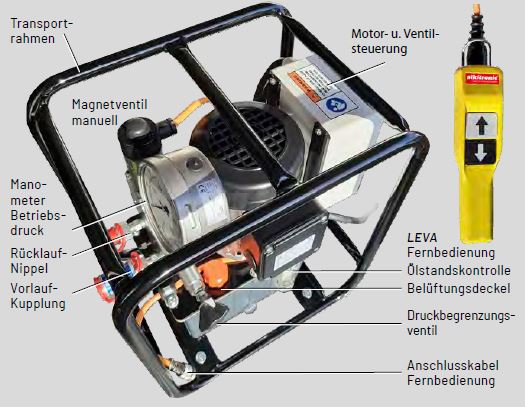

leva2

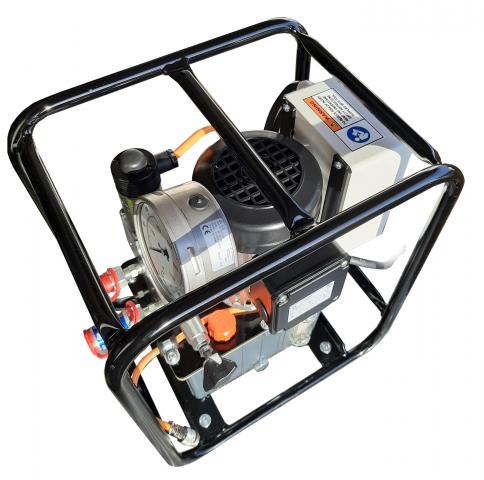

leva_161058-schrgoben

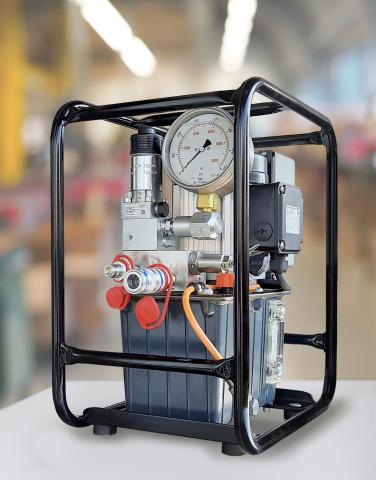

leva-01-05-2020-werkstatthgrd
alkitronic-leva-hgrd_wei

APPLICATIONS

  • The alkitronic® LEVA is a robust, powerful, electric driven hydraulic pump.
  • Small, low weight, reliable – ideal for service use.
  • Simple operation, continuously adjustable up to 700 bar.
  • Trouble-free operation on the 230 V main grids as well as on voltagecontrolled mobile generators.

LEVA

ADVANTAGES

  • Flexible bolting applications: Compatible with almost all hydraulic torque wrenches, regardless of cylinder size and torque range.
  • High precision through all pressure ranges, defined by precisely adapted oil flow rate.
  • Simple operating remote control for ergonomic working. 2-button operation for start / advance stroke with automatic return stroke and stop function.
  • Rapid pressure relief of the system via a manual solenoid valve.
  • Pump design with very low heat generation. Oil level control with continuous analog temperature display.


ALKITRONIC SPECIALS

  • Modular, clear assembly structure for cost-saving parts exchange.
  • Sturdy profile frame for stability and transport security.
  • Significant increase in efficiency thanks to extremely short training period

NOVA

ADVANTAGES

  • Huge oil flow due to intelligent electronic controlling, powerful
    motor.
  • Easiest automatic operation for all cylinder sizes without any
    manual presetting.
  • Ergonomic remote control for manual or automatic operation.



ALKITRONIC SPECIALS

  • No magnetic valve control Powerful but gentle changeover from power stroke to idle stroke, due to direction switch of the drive motor, which guarantees high durability of the equipment.
  • Capable of continuous operation – minimal heat generation
    No oil overheating by the innovative motor drive in combination
    with the automatic mode. The automatic operation only provides
    the flow supply with the working pressure necessary for efficient
    bolting.
  • Low running costs Brush-free synchronized motor, maintenance-free and low wear. Usable on all international mains supply without any change.

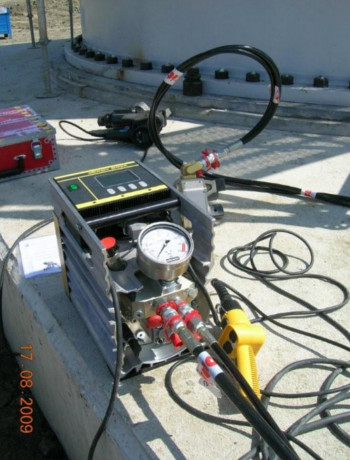

novawindkraftanlage(3)

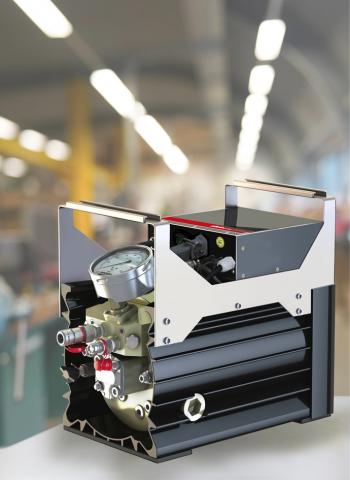

novamitwerkstatthintergrund-2021-8cmhoch-300dpi(2)

APPLICATIONS

Electric driven hydraulic pump, usable worldwide 100-253 V / 45-66 Hz, up to 700 bar / 10,000 psi for hydraulic wrenches with single or double-acting cylinders.

  • Duo- or Quattro version (for 2 or 4 wrenches etc.) optional.
  • Robust compact design for use on the roughest construction sites.
