TIGER CHAIN BLOCK
chainblock

Our chain blocks are robust and reliable and have a variety of features including Quad Cam pawls, “EZ Check” hooks, cross-hauling capabilities and load limiters to ensure that your safety is never compromised.

Download Brochure
hook
PROCB
procb-8t-side-on-web
prolh-8-copy
tcb-2
tcb-5
tcb-6
tcb-7
tcb-8
PROCB (TCB) PROFESSIONAL CHAIN BLOCK

Main Features:

  • DNV GL Verification tested according to NORSOK R-002
  • Range from 250kg – 35.0t
  • Available with slipping clutch overload protection
  • Tested and certified for “fleeting”, “drifting” and “cross-hauling” applications up to 45° from the vertical without deration
  • Available with forged clevis adaptor components
  • Patented Quad Cam Pawl System
  • Certified 2% light load protection
  • Rugged steel body construction yet lightweight and portable
  • Double cover protection for brake chamber
  • Drop forged & heat-treated alloy hooks
  • High quality alloy calibrated load chain
  • Heat treated alloy steel triple spur gears and pinion shaft
  • Operating temperature of -40°C to +80°C
  • Proof tested to 1.5 times rated capacity
  • Can be chained to any height of lift to meet your exact requirements
  • Individual spares readily available
  • Suitable for underground mining use
  • Also available with stainless steel load chain
  • Available with load bearing swivel hooks to meet relevant standards e.g. AS 1418.2
  • Meets or exceeds all international standards
SS20 CORROSION RESISTANT CHAIN BLOCK

Main Features:

  • Suitable for use in multi-immersion applications
  • DNV GL Verification tested according to NORSOK R-002
  • Range from 500kg – 30.0t
  • Patented Quad Cam Pawl System – proven reliability
  • Phosphor Bronze Bearings
  • Tested and certified for “fleeting”, “drifting” and “cross-hauling” applications up to 45° from the vertical without deration
  • Guaranteed 2% light load protection
  • Fully Corrosion protected body and components to ensure reliable long-term use
  • Over 1500 hours protection to ASTM B117 conditions
  • Corrosion protected load and hand chain
  • Double cover protection for brake chamber
  • Marine chain bags available on request
  • Available with slipping clutch overload protection
gearbox
grooved-friction-discs
pinion-shaft-square
ss20-1
ss20-2
ss20-3
ss20-4
ss20-6
ss20-6t
ss20-6t-side-on-web
ss20-9
ss20-11
ss20-12
atex-ss20
atex-ss20-1t-angled
atex-ss20-20t
sr-6
sr-7
SPARK RESISTANT CHAIN BLOCK

Main Features:

  • Category II – high safety – Certification: Ex II 2 GD c IIC T4 IIIC T135°C
  • Manufactured in accordance with ATEX Directive 2014/34/EU and Machinery Directive 2006/42/EC
  • Developed for the use in potentially explosive atmospheres (ATEX zones),
  • Special coated units
  • Different capacities and heights of lift to suit your specific requirements
  • Available with stainless steel load chain
  • Available as a combination unit with trolley
  • Available with overload protection
SS SPARK RESISTANT LEVER HOIST

Main Features:

  • Category II – high safety – Certification: Ex II 2 GD c IIC T4 IIIC T135°C

  • Manufactured in accordance with ATEX Directive 2014/34/EU and Machinery Directive 2006/42/EC

  • Developed for the use in potentially explosive atmospheres (ATEX zones).

  • Different capacities and heights of lift to suit your specific requirements

  • Available with stainless steel load chain

  • Available with overload protection
rov-2
rov-3
rov-4
rov-d-handle
rov-handwheel-for-on-deck-hol-adjustments
rov-qd-direct-drive-couplings
rov-torque-tool-option
ss20-6t-rov-website-photo
ROV CHAIN BLOCK

Main Features:

  • 3.0t, 6.0t, 8.0t, 10.0t, 15.0t, 20.0t and 30.0t capacity units available
  • Fully corrosion protected
  • Several choices of interface:
    • Hydraulic Hot Stab connection dual port type A and B
    • Rotary Torque Receptacle Classes 1,2 & 3
    • Manual D Handle, T-bar or Fishtail Direct Drive manual connection
    • QD Direct Drive Couplings
  • Compliant with BS ISO 13628-8:2002 & BS ISO 13628-1:2005
  • Stainless steel 316 framework and handle
  • Proven Subsea brake design
  • Patented Quad Cam pawl system – proven reliability
  • One-piece brake chamber cover
  • Heavy duty flexible chain bag c/w stainless steel mounting frame available as an option
  • 4 Point manipulator connection points
  • Compact and light weight
  • Balanced design for easy handling and installation
  • Marine specific friction discs
  • New hand wheel feature for on-deck height of lift adjustments
  • Bespoke chain lengths to meet exact customer requirements
  • Full individual spares back up
  • Each unit is fully tested and certified before delivery
MINI CHAIN BLOCK 250KG

Main Features:

  • Guaranteed light load protection
  • Double cover protection for brake chamber
  • Drop forged & heat-treated alloy hooks
  • High quality alloy calibrated load chain
  • Proof tested to 1.5 times rated capacity
  • 3m height of lift as standard but can be chained to exact requirements
  • 4:1 Factor of safety
tr7-2
adaptor-clevis-shackle
adaptor-clevis-shackle-angled
adaptor-egg-master-link
adaptor-hoist-2
adaptor-self-locking-hook
adaptor-sling-hook

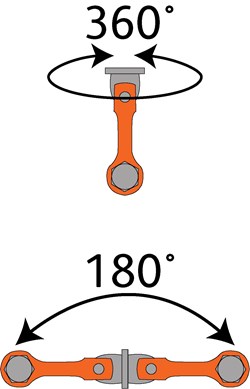

clevis-shackle-rotation-diagram
mini-lever-hoist-adaptor-web-phot
ss19-adaptable7
ss20-egg-master-link-adaptor
ADAPTOR HOISTS

Main Features:

  • Available for Tiger PROCB14/SS20 chain blocks and PROLH/SS19 lever hoists
  • All fittings meet the standards of EN1677 with mechanical values for Grade 10
  • Drop forged adaptor for maximum strength – certified 4:1 FOS at all angles
  • Clevis shackle, Self-locking (safety) hook, reevable egg (master) link or sling hook fitting available
  • Overload protection available
  • For lifting at angles (cross hauling/fleeting/drifting) with no deration
  • Chain Blocks – 500kg – 10t capacity
  • Lever Hoists – 500kg – 10t capacity
LOW HEADROOM COMBINED CHAIN BLOCK AND TROLLEY

Main Features:

  • Very low headroom
  • Range from 1.0t to 10.0t
  • Ideal for locations where headroom is limited
  • Operating temperature of -40°C to +80°C (temperature range of -60°C to +80°C available as an option)
  • Can be chained to any height of lift to meet your exact requirements
  • Chain carrier available
  • Corrosion or spark resistant versions available
  • Available with load limiter
  • Available with beam locking device
  • These units meet and exceed all the requirements within BS EN 13157: 2004+A1:2009 and AS1418.2.
lhc-1
lhcg-1t-with-locking-device
ultra-low-headroom-ulcg3000-3d2019041
ULTRA LOW HEADROOM COMBINED CHAIN BLOCK AND TROLLEY

Main Features:

  • Ultra low headroom
  • Range from 1.0t to 12.0t
  • Ideal for locations where headroom is limited
  • Operating temperature of -40°C to +80°C (temperature range of -60°C to +80°C available as an option)
  • Can be chained to any height of lift to meet your exact requirements
  • Chain carrier available
  • Corrosion or spark resistant versions available
  • These units meet and exceed all the requirements within BS EN 13157: 2004+A1:2009 and AS1418.2.
  • cts
  • Black chain carriers for Chain Block hand chain available
  • Proven track record
  • Different capacities and heights of lift to suit your specific requirements
CORROSION RESISTANT COMBINED CHAIN BLOCK AND TROLLEY

Main Features:

  • Range from 0.5t to 30.0t
  • Twin bar or single bar trolley options
  • Can be chained to any height of lift to meet your exact requirements
  • Ideal for locations where headroom is limited
  • Extended beam width available
  • Chain carrier available
  • Geared and plain trolley versions available
  • Operating temperature of -30°C to +50°C (temperature range of -50°C to +50°C available as an option)
  • Corrosion or Spark Resistant versions available
