PLATE HEAT EXCHANGER TOOLS
exhangertools

Are you looking for torque multipliers particularly developed for assembly of plate heat exchangers? alkitronic provides them. Our electric or pneumatic torque multipliers are designed to save our customers’ time during maintenance. They offer continuous rotation tightening or loosening of heavy bolt connections with spindles or long threads. Ideal operation areas are bolting connections of plate heat exchangers.

Benefits of Torque Multipliers for Plate Heat Exchangers by Alkitronic

  • Considerable time saving due to permanent operation.
  • Short assembly time.
  • Large plate packs can be tightened fast and simultaneously when using two or more torque multipliers.
  • Load-free operation.
  • Targeted types for convenient working in every tightening situation.
  • alkitronic RCL: fast gear for turning in and quick switching to power gear.
  • Remote operation allows one man assembly. One person can operate the tool from a remote pendant and measure the plates at the same time.

R/SG

ADVANTAGES

  • Load-free operation and short assembly times.
  • Fast and simultaneous tightening of large plate packs when using 2 or more torque multipliers at the same time.
  • Targeted types for convenient working in every tightening situation.
  • alkitronic RCL with fast gear and quick switching to power gear.

ALKITRONIC SPECIALS

  • Simple 1-finger operation allows fast and safe working.
  • Considerable time saving  due to permanent operation (optional with RCL and CLS-SG).
  • Radial gearing (R) with high-performance worm-drive.
  • Tangential gearing (SG) with highly efficient spur gear.
  • Robust motor and gear housing of cast aluminum.

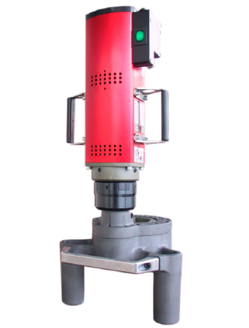

ritetrendcompany

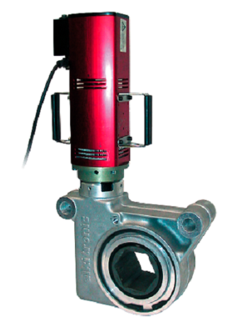

RSG2
RSG3

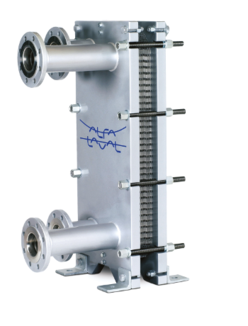

RSG4

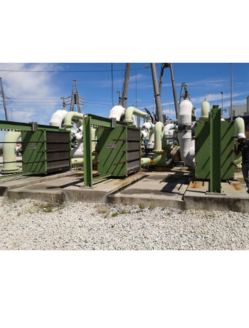

RSG5

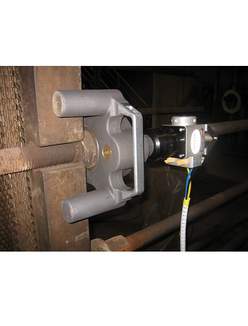

RSG6

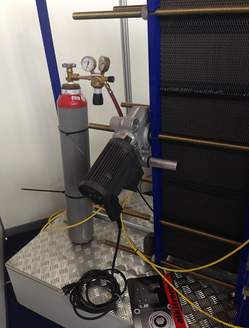

RSG8

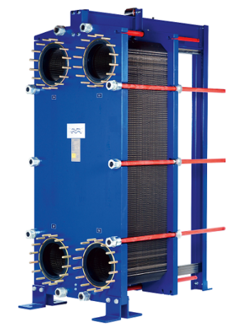

RSG10

Specifications
Pneumatic driven models:an operating pressure of 2-7 bar at a volume flow of approx. 10-15 liter/s  is required for  reliable  operation and  indicated torques. The torque accuracy depends on the stability of the power supply system.

Electric driven Models:Repeat shut-off accuracy ± 3% for the same bolting application Universal AC Input 100 V – 253 V, frequency 45 Hz – 66 Hz Power max. 2000 W, protection category I. Our EFCip-models come with protection art IP 54 (shields tools from moisture and dust). All EF models can be equipped optionally with IP54 protection.

APPLICATIONS

  • Continuous rotation tightening or loosening of spindles or long threaded bolts These tools are specialized for  bolting connections on plate heat exchangers.
  • Torque range of the pneumatic torque multipliers: alkitronic RCL two gear torque multiplier with radial gearing from 590 Nm to 4,840 Nm, alkitronic CLS-SG with tangential gearing from 1,280 Nm to 3,780 Nm.
  • Torque range of  electric torque multipliers: alkitronic EF-R / EFCip-R / EF-SG / EFCip-SG: from 560 Nm to 3,780 Nm.
